SDR400 Ebyte Data Cofdm Receiver Hopping Digital Radio Module

Ask Lasest Price
Model Number :	SDR400
Brand Name :	WDS/Sinosun
Supply Ability :	1000 Set/Sets per Month
Price :	$199.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

SDR400 Ebyte Data Cofdm Receiver Hopping Digital Radio Module

SDR400 Series speed Frequency Hopping Digital Radio Module for Industrial Applications

Product Overview

SDR400 Series Long distance, micro volume, low cost, 400/800 / 900MHz multi-band

High-speed Frequency Hopping Digital Radio(Module)

The SDR400 series of high-speed FM radio(modules) based on software radio (SDR) technology provide a small, reliable and reliable remote communication solution for low-cost, space-constrained applications. The same radio(module) can be set to select the work in the 400/900MHz or 800MHz band.

SDR400 series of high-speed frequency hopping digital radio (module) with long-range, high-speed reliable, low latency and secure data communication advantages. Supports full duplex serial communication and diagnostic communication. SDR400 series of high-speed frequency hopping digital radio (module) has a very high noise suppression, jamming exclusion and flexible frequency synthesis, digital modulation and matched filter detection technology. SDR400 series of high-speed frequency hopping digital radio (module) super-class performance and technical indicators, excellent resistance to electromagnetic jamming and reliable communication capabilities and advanced encryption communication function, is the industry's leading super digital transmission products.

SDR400 Ebyte Data Cofdm Receiver Hopping Digital Radio Module

Product Paramenters

Wireless Specifications
Frequency	410-480MHz/840-845MHz/902-928MHz
Spereading Method/ Modulation Scheme	Frequency Hopping GMSK,2GFSK,4GFSK,QPSK
Forward Error Correction	Hamming,BCH,Golay,Reed-Solomon,Viterbi
Error Detection	32 bits of CRC,ARQ
Encryption	Optional(see-AES option)
Range	100km
Serial Interface	3.3V CMOS,RS232/485(Selectble)
Serial Baud Rate	300bps to 230.4kbps
Operating Modes	Point-to-Point,Point-to-Multipoint, TDMA,Store&For-ward Repeater, Peer-to-Peer
Signals Interface	RSSI LEDs,Tx/Rx LEDs,Reset ,Config, Wake-up,RSmode,4 Digital lnputs/ Outputs,1Analog lnput,1Analog Output
Remote Diagnostics	Battery Voltage,Temperature,RSSI, Packet Statistics
Rejection	Adjacent Channel @ 400 MHz:60 dB Alternate Channel @ 400 MHz:70 dB Adjacent Channel @ 900 MHz:57 dB Alternate Channel @ 900 MHz:65 dB
Core Voltage	3.3VDC is required for 1W 3.6VDC is required for 2W
Power Consumption (3.3V)	Sleep:＜1mA(Future) dle: 20mA Rx: 45mA to 98mA Tx Peak: 2A
Connectors	Antenna:UFL Data :80 Pin SMT
Environmental	-55℃~+85℃ 5~95% humidity,non-condensing
Weight	Approx. 5 grams
Dimensions	Approx. 1.05"x1.3"x.13" (26.5mm x 33mm x 3.5mm)
Approvals	FCC Part 15.247 Pending IC RSS210 Pending FCC Part 15.90 Pending IC RSS119 Pending CE Pending

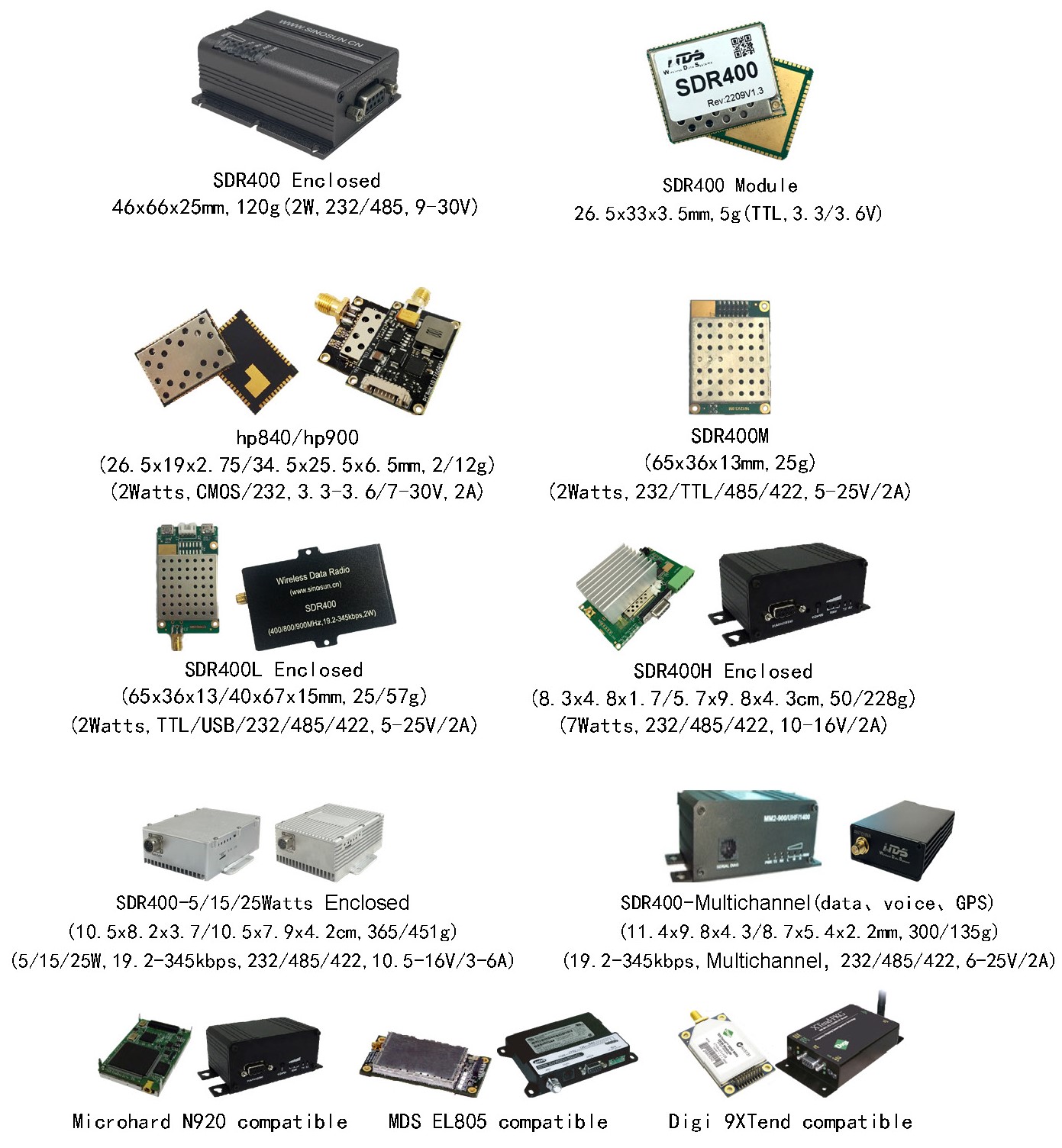

Price(The specifications are different, the price is different)
2W SDR400 Module	$199/unit
2W SDR400 Enclosed	$299/unit

Performance:

400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP. Low power consumption. Tiny volume, lightweight structure, body building for UAV.

Advantages:

70Mbps high-speed, long-distance transmission

Intelligent frequency selection/autonomous frequencyhopping anti-jamming

Point-to-point,Point-to-multipoint,Multipoint-to-multipoint

Multiple network + multiple serial

Compact/harsh environment applications
