Top-Notch DDL Airborne Modem Radio Ethernet 900 Mhz

Ask Lasest Price
Model Number :	DDL1x2-1400
Brand Name :	WDS/Sinosun
Supply Ability :	1000 Set/Sets per Month
Price :	$950.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

Top-Notch DDL Airborne Modem Radio Ethernet 900 Mhz

Top-Notch DDL Airborne Radio Perfect for Your Business Communication

Product Overview

DDL Airborne Radio

The new DDL series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. DDL series based on SDR software defined radio platform with 2X2 MIMO, It adopts Beamforming, Maximal Ratio Combining (MRC), Maximal Likelihood(ML) algorithm, low density parity check (LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming. DDL series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.

Top-Notch DDL Airborne Modem Radio Ethernet 900 Mhz

Product Paramenters

Wireless Specifications
Frequency Range	320-450/450-550/550-700MHz,1000-1300/1300-1500MHz, 1.8-2.2/2.2-2.5GHz,4.4-5.0/5.0-6.0GHz,70M-6GHz Customized
Channel Bandwidth	1.25/2.5/5/10MHz Adjustable
Modulation Mode	COFDM, DSSS-CCK/BPSK/QPSK/16QAM/64QAM (Adaptive)
Throughput	70Mbps@10MHz/25Mbps@5MHz/10Mbps@2.5MHz/4Mbps@1.25MHz
Sensitivity	-102dBm@5MHz
Transmission Distance (line-of-sight)	over 80 km (1Watts x 2), over 100 km (2Watts x 2),over 150 km (10Watts x 2), over 200 km (20Watts x 2)
Transmission Power	1Watts x2 2Watts x2 10Watts x2 20Watts x2
Networking Capabilities
Communication Mode	Point-to-point, point-to-multipoint and multipoint-to-multipoint, Reapter
Network Topology	Centerless of no-master/slave to MPtoMP
Wireless Protocol	HTDMA
Network Protocol	IPv6,QoS,DNS,HTTPS,IP,ICMP,NTP,DHCP,VLAN
Encryption	DES56/AES128/AES256
Anti-jamming	Intelligent frequency selection/Autonomous frequency hopping
Mobility	Support movement speed greater than 200 km/h
Transmission Delay	Less than 10 ms
System Parameters
Interface	Network port (IP/WiFi), Serial port (232/485/422/TTL,Sbus/USB/Bluetooth),Audio port (MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G LTE/Satellite/Fibe
Video Interface	IP,HDMI/SDI,CVBS
Local/Remote Management	PC terminal Web browsing, Mobile APP: topology, node and link status, distance monitoring, whole network parameter configuration, software upgrade and other functions
System Upgrade	Support one-click upgrade, remote upgrade
Positioning Function	GPS/BDS
Power Supply	12-36VDC,1Watts×2/2Watts×2 14.8-36VDC,10Watts×2 18-36VDC,20Watts×2
Power Consumption	Operation 1-2A/Standby 0.5-0.7A@12V,1Watts×2/2Watts×2 Module/Airborne/Handheld Radio Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2 6-10A/Standby 0.7-0.9A@20V,20Watts×2
Physical Properties
Operating Temperature	-40℃~ 80℃
Protection Level	IP65,IP66/IP67(Customized)
Size/Weight	11.7x6.2x1.9cm/149g(1Watts×2/2Watts×2 Airborne Radio-Lron Gray ) 11.7x6.2x4.2cm/364g(1Watts×2/2Watts×2 Airborne Multi-interface Radio-Black) 12.7x11.0x3.3cm/635g(10Watts×2/20Watts×2 Airborne Radio-Lron Gray)
Price(The specifications are different, the price is different)
1Watts×2 Airborne Radio	$950/unit
2Watts×2 Airborne Radio	$1450/unit
10Watts×2 Airborne Radio	$2450/unit

Performance:

400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP. Low power consumption. Tiny volume, lightweight structure, body building for UAV.

Advantages:

70Mbps high-speed, long-distance transmission

Intelligent frequency selection/autonomous frequencyhopping anti-jamming

Point-to-point,Point-to-multipoint,Multipoint-to-multipoint

Multiple network + multiple serial

Compact/harsh environment applications

Hardware Interfaces

1:RF Channels 1-2 Connectors [SMA Female]

2:Power/Communication Ports

3:Link Status Indicator

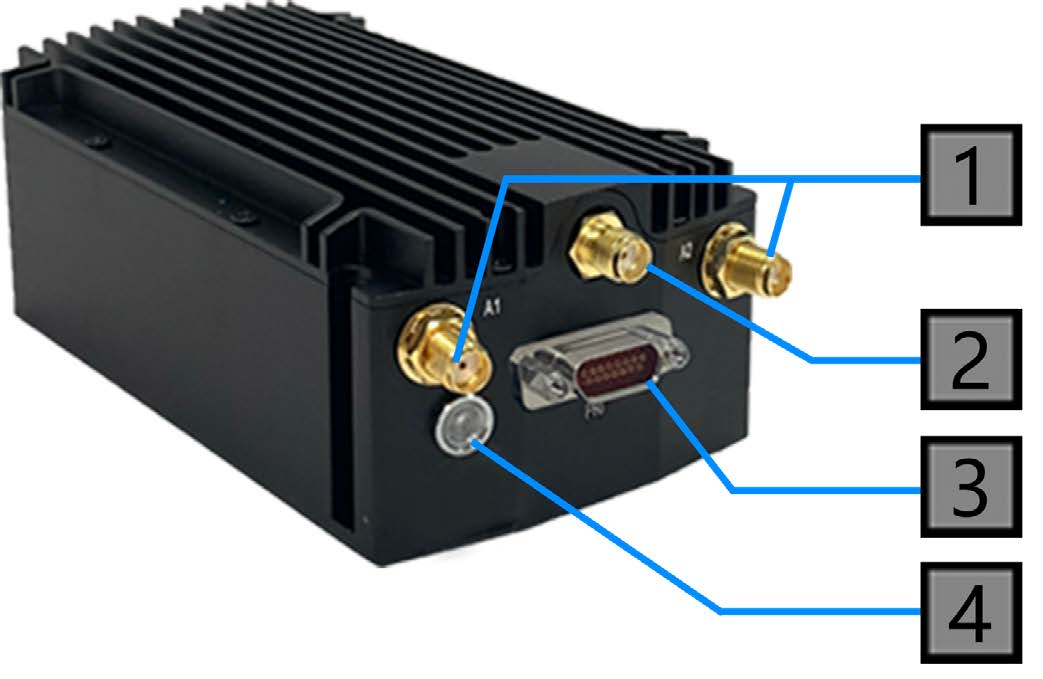

1:RF Channels 1-2 Connectors [SMA Female]

2:WiFi Antenna

3:Power/Communication Ports

4:Link Status Indicator

1:RF Channels 1-2 Connectors [SMA Female]

2:WiFi Antenna

3:Link Status Indicator

4:HDMI Port

5:Power/Communication Ports

Title goes here.

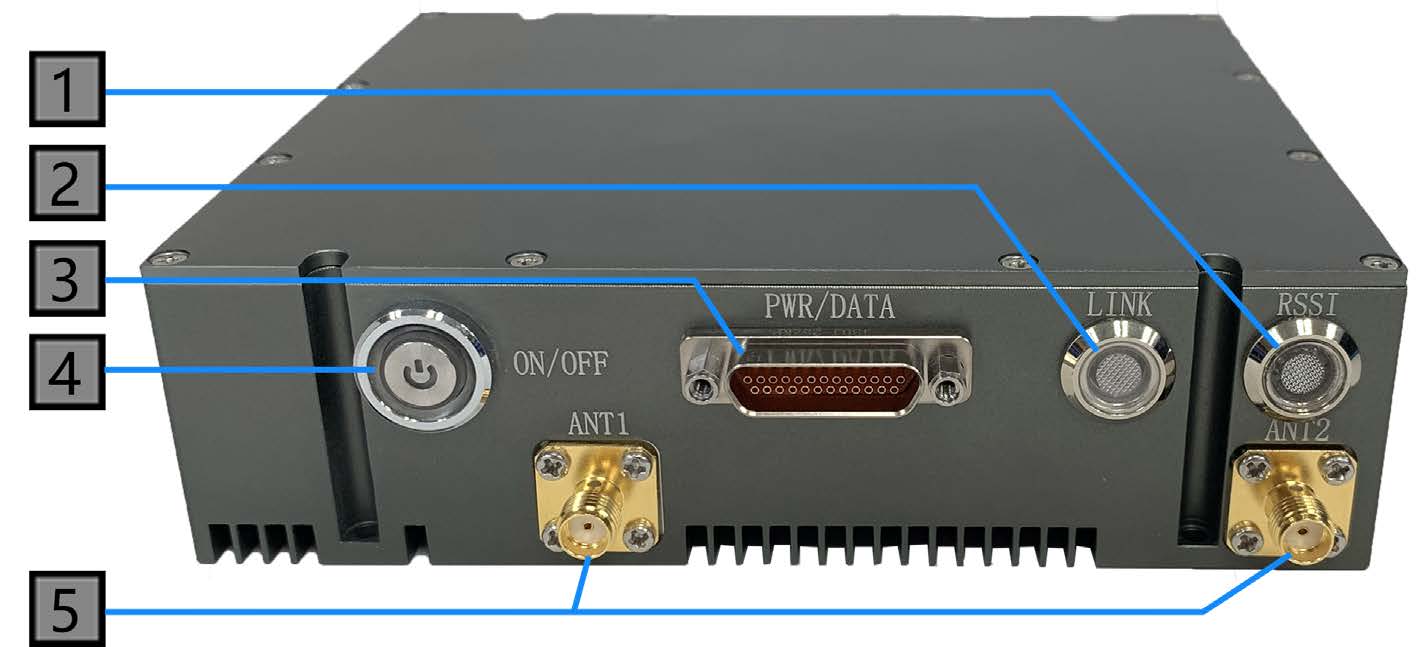

1:RSSI Link Indicator

2:Link Status Indicator
3:Power (14.8-24V), Ethernet, and Serial Port Connector
4:Radio switch
5:RF Channels 1-2 Connectors [SMA Female]
