Shenzhen Sinosun Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Model Number : | MM10x2-1400 |
| Brand Name : | WDS/Sinosun |
| Price : | $7,000.00/sets >=1 sets |
General | ||
Waveform | Mobile Network MIMO (MN-MIMO) | |
MIMO Technology | Space-time coding,Space Diversity,TX /RX beamforming,Spatial
multiplexing | |
Receive Sensitivity | -103dBm@5MHz BW | |
Channel Bandwidth | 2.5/5/10/20MHz ,40MHz optional；FDD by dual-antennas with
two-frequencys transceiver(Carrier Aggregation) optional | |
Data Rate | 1-100Mbps(20MHz BW)/180Mbps(40MHz BW) Adaptive,QoS | |
Modulation Mode | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed
setting optional) | |
RF Output Power | 10Watts×2/20Watts×2 | |
Single Hop Communication Distance | 100-300 KM (visible), 1-30 KM (urban area) | |
Mode | Distributed without a center
Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Two or
three floors Dynamic routing,Multi-hop relay,
Star/Line/Network/Hybrid | |
Single Hop Delay | Average 7mS(20MHz BW) | |
Encryption | DES, AES128/256 ,SNOW3G/ZUC optional,Chip /TF card encryption
customized | |
Anti-jamming Mode | Manual spectrum scanning channel selection, Full band Intelligent
frequency channel Selection(Spectrum awareness)/Full band Autonomous frequency hopping/Roaming mode optional | |
Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power
and other parameter settings, spectrum scanning, real-time display
and statistical records of network topology, link field strength
signal-to-noise ratio, upload and download traffic,node
distance,GPS/Beidou electronic map, temperature/voltage/jamming
Monitoring, software upgrade.Remote silence and wake-up options | |
Others | The startup time is less than 28 seconds, and the network
access/update/switchover time is less than 1 second.There is no
limit on the user capacity of a single system(256 nodes or more) and the number of hops in Mesh networks(Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss of multiple hops is less than 70%.Automatic carrier tracking, support over 1000 km/h mobile communication | |
Bands(70M-6GHz) | ||
UHF | 350-450/450-550/570-700/800-950 | |
L Band | 1000-1200/1300-1550 | |
MIIT | 336-344/512-582/566-626/ 606-678/1420-1520/1430-1444 | |
S Band | 1.6-1.8/1.8-2.0/2.0-2.2/2.2-2.5 | |
C Band | 4.4-5.0/5.0-6.0 | |
Environmental | ||
Operation Temperature | -40℃ ~+80℃ | |
Protection Level | IP66,IP67/IP68 Customized | |
Mechanical | ||
Size/Weight | 22.9x18.9x6.2cm/3.86kg(with 22.2V/9.6AH battery Backpack Radio)
31.4x18.9x6.2cm/4.95kg(with 14.8/28.8AH battery Backpack Radio) | |
Installation/Color | 4 Mounting Holes/Black,Lron Gray,Army Green Optional | |
Power | ||
Supply Voltage | 14.8-36VDC(10Watts×2 Backpack Radio) 18-36VDC(20Watts×2 Backpack Radio) | |
Power consumption | Operation 3-6A/Standby 0.7-0.9A@16.8V(10Watts×2 Airborne Radio) Operation 6-10A/Standby 0.7-0.9A@20V(20Watts×2 Backpack Radio) | |
Power Selection | Power Supply by Twist-Lock Battery or Main Cable | |
Batteries | 10-12/6-8 hours for 28.8/9.6AH polymer lithium battery | |

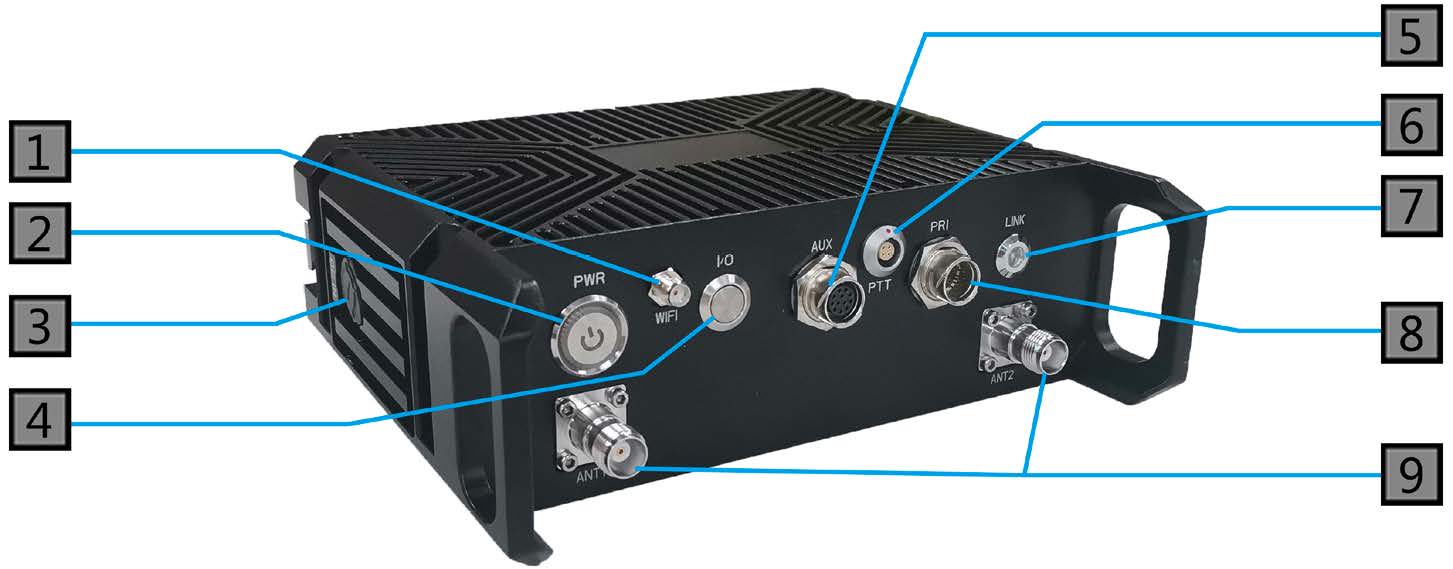

Interface | ||
Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi
AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input | |
Push to talk/Auxiliary interface | MIC,SP,PTT,GND,RS485/422,USB2.0OTG | |
Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite | |
Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 | |
Link Status Indicator | Steady red - The network is not connected Blinking red -
Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down | |
RSSI Link Indicator | Steady green - The link quality is excellent Blue Steady - The link
quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down | |
Management Interface/Control Interface | Web-based network management/GUI, API for secondary development
interface/SNMP | |
OEM | ||
Size/Weight | 10.1x5.4x1.9cm/123.5g | |
RF | SMP | |
|
|
